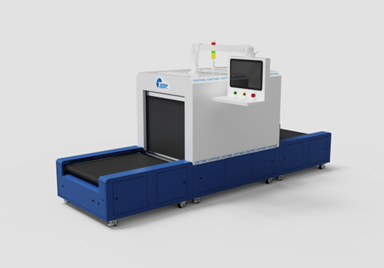

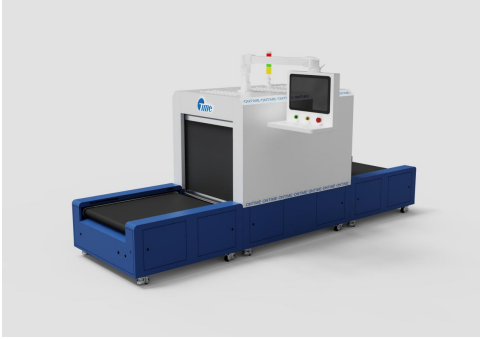

Bio Tunnel UHF 01

Description

Model: Bio Tunnel UHF 01



Mechanical Parameters

– Entry/Exit Conveyor Size: L1000 × W970 × H470 mm

– Tunnel Size: L1200 × W970 × H1300 mm

– Overall Size: L3320 × W970 × H1300 mm

– Tunnel Internal Size: L1050 × W720 × H695 mm

– Conveyor Height: 415 mm

– Conveyor Speed: 50 m/min

– Conveyor Direction: Bi-directional

– Conveyor Load Capacity: 65 kg

– Signal Shielding System: Electric lifting shield shutter



Electrical Parameters

– Working Voltage: 220V (grounded)

– Rated Power: Max 1000W, normal 100~300W

– Sensors: Omron photoelectric sensors ×6 pairs; Local light curtain sensors ×2 pairs

– Buttons: Start, Reset, Emergency Stop

– Alarm Light: Three-color signal light with buzzer

– Control System: Delta PLC (Programmable Logic Controller)

– Leakage Protection: Chint air switch 20A 2P

– Connection: Aviation plugs



RF/UHF Parameters

– Protocol: ISO/IEC 18000-6C / EPC Global Class 1 Gen 2

– Frequency: 860–940 MHz

– Reader: Impinj E710 module

– Output Power: 5–33 dBm (±1 dB adjustable)

– Sensitivity: –85 dBm @10% BER

– Antennas: 9 dBi directional antennas ×4

– Signal Shielding Distance: <10 cm

– Tag Reading Capacity: 300 pcs



Industrial Control Parameters

– Screen: 15.6″ capacitive touchscreen; Resolution 1920×1080

– OS: Windows 11

– Pre-installed Software: Outbound verification software

– Configuration: Intel i5 4300 CPU; 4GB RAM; 32GB SSD

– Keyboard/Mouse: Integrated stainless steel industrial keyboard

– Cantilever Arm: 270° rotation around tunnel; 360° rotation around arm column
