BioAccess Tech LLC - Product

Capacity
– 200,000 Card users / 1,000,000 transaction logs
Bluetooth Support
– Compatible with Mobile Card solution
VoIP (Voice over IP)
– Voice call function Built-inCamera
– User image acquisition for every transaction with storage in server
USB (OTG) Memory Slot
– Easy data transfer using USB memory stick
– F/W update
Multifactor Authentication
– RF card, mobile card, password
4 inch Touch Screen
Card Option
– 125kHz EM & HID, 13.56MHz Mifare & Felica
Face Detection
– User Face should be detected for Authentication process with any mode of Card, password or mobile card.
– Daylight sensor with flash for Face detection in dark condition

CPU	1Ghz Single Core (Cortex-A9)

Memory	256MB 8GB NAND Flash

Authentication Type	Card + Password + Mobile Key

Card Capacity	200,000

Log Capacity	1,000,000 / 20,000 image logs 12,500 user pictures

LCD	4 Innch Touch Screen

Supported Card	High frequency Card (13.56Mhz) -Mifare Low frequency Card (125khz) -EM, HID Prox Felica Card (ISO/IEC18092)

Communication	Blutooth (BLE), TCP/IP, Wiegand, RS-485, RS-232, WiFi(Option)

USB OTG (On-The-Go)	O

Power	DC 12V & 24V

Dimension	80(W) X 153(H) X 18.2(D) mm

Catalog Purchase Inquiry

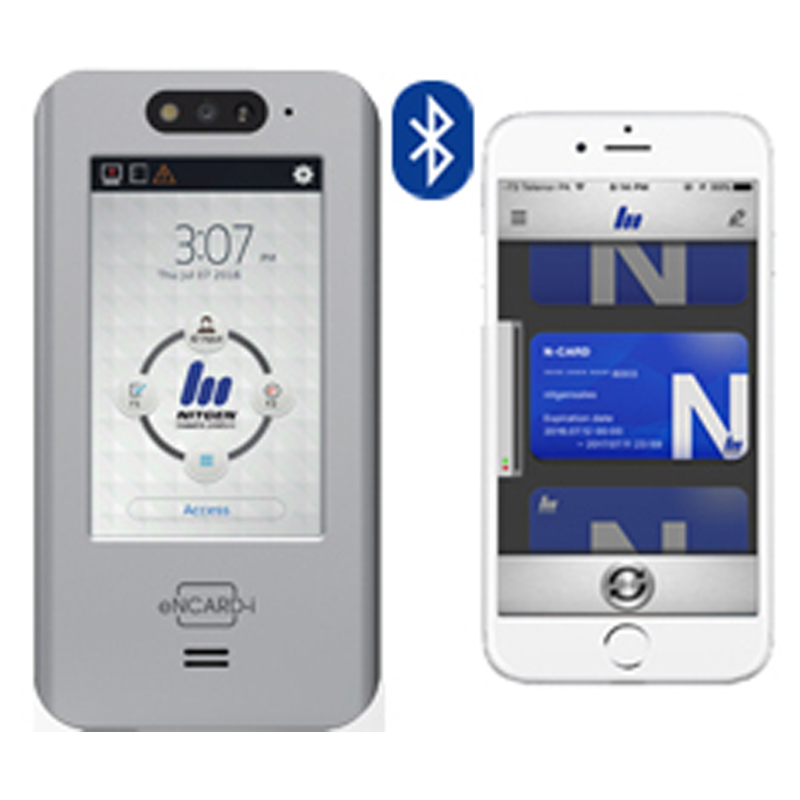

eNCard-i
